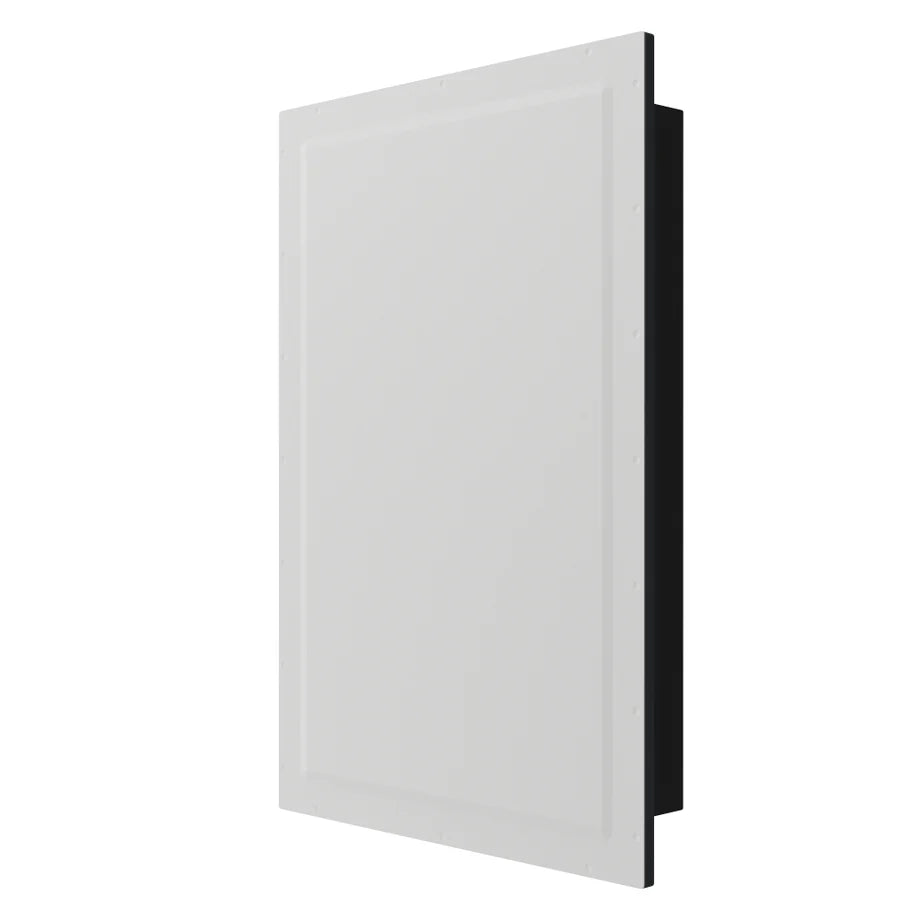

Audio that disappears into your space—without compromising performance.
Sonance Invisible Series delivers an immersive solution that seamlessly integrates into residential, commercial, and marine environments while preserving the integrity of your design.

Key Features

Provides approximately 180-degree sound dispersion for immersive audio experiences.
Sonance Laminated Core Transformer for tap selection between 6 Ohm, 70V, and 100V.

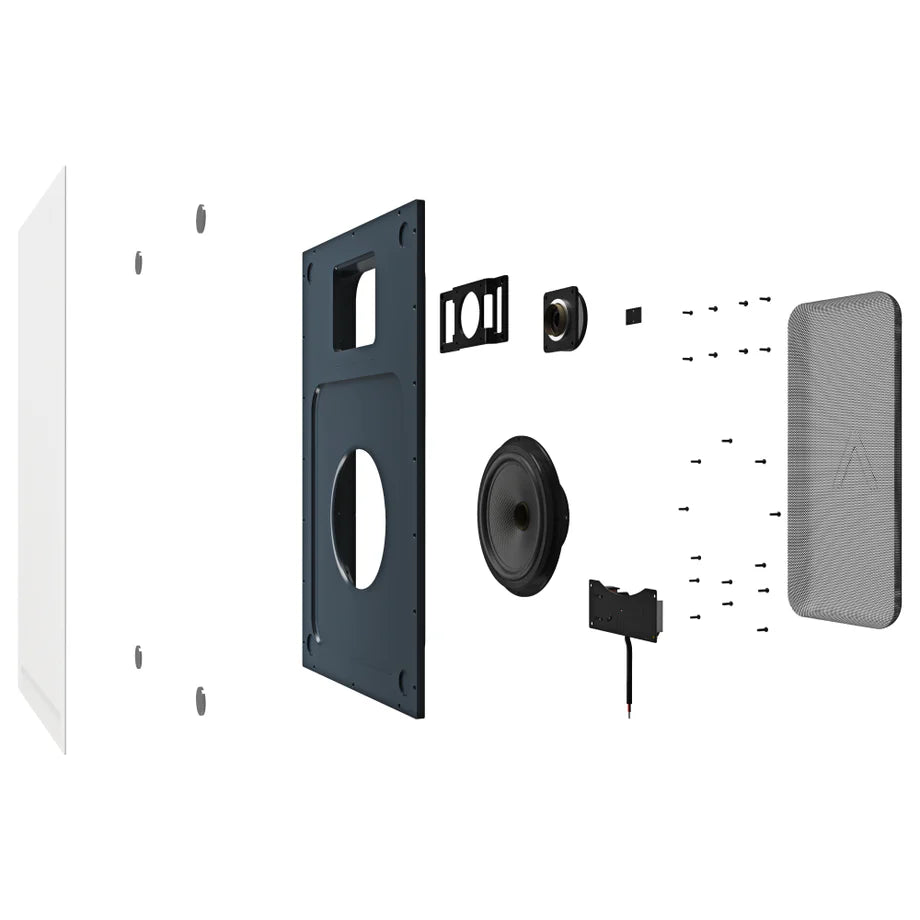

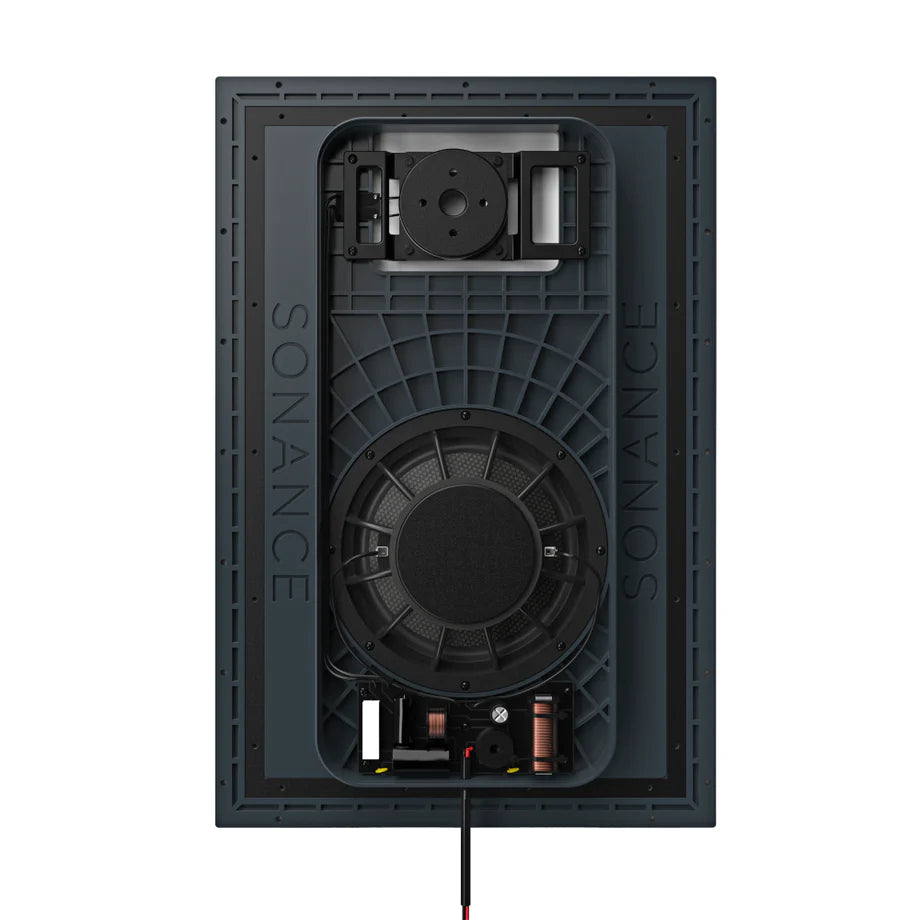

Motion Flex Technology: Incorporates an acoustically isolated baffle, Air Flex Woofer, and Wave Flex Drive Unit for superior detail and range.
Easily installs into drywall, select plasters, wallpaper, leather, and wood veneer applications for seamless integration.
Sonance CDX Crossover Design: Delivers warmth and clarity at all volume levels for an enhanced listening experience.
Sonance DISC measures and standardizes the finish and performance, ensuring consistent audio quality across installations.
Install in-wall or in-ceiling (IS10-2W subwoofer suitable for in-wall only)

Manufacturer Site here: https://sonance.com/collections/invisible-series?

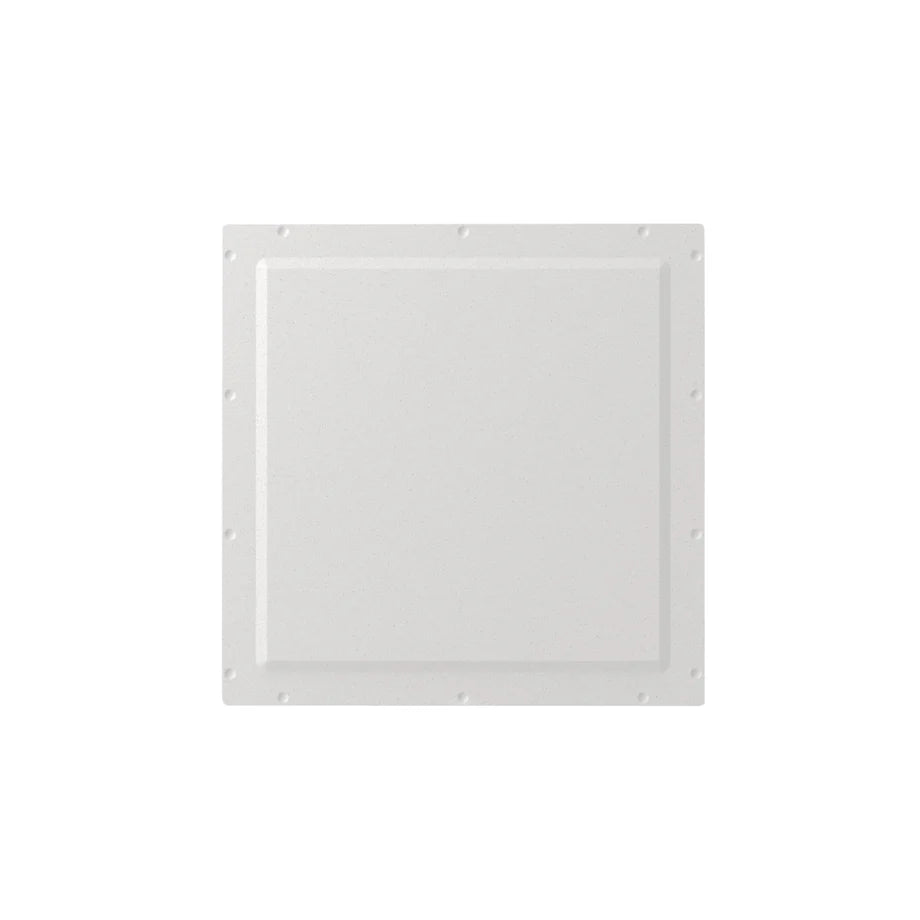

IS6 (pair)

Key Features

6 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor

Specifications

SKU | Color

93478 (White)

Wave Flex Drive Unit

20in^2 (127cm^2) bending wave diaphragm, 1.75in (44mm) voice coil

Air Flex Woofer

98in^2 (633cm^2) air pulse diaphragm, 6.5in (165mm) carbon fiber woofer

Frequency Response (+/- 3db)

50Hz - 30kHz

Power Handling (RMS)

100 watts RMS

Sensitivity

84dB (2.83V/1m)

Nominal Impedance (Ohms)

6 ohms

Dispersion

170 degree hemispherical

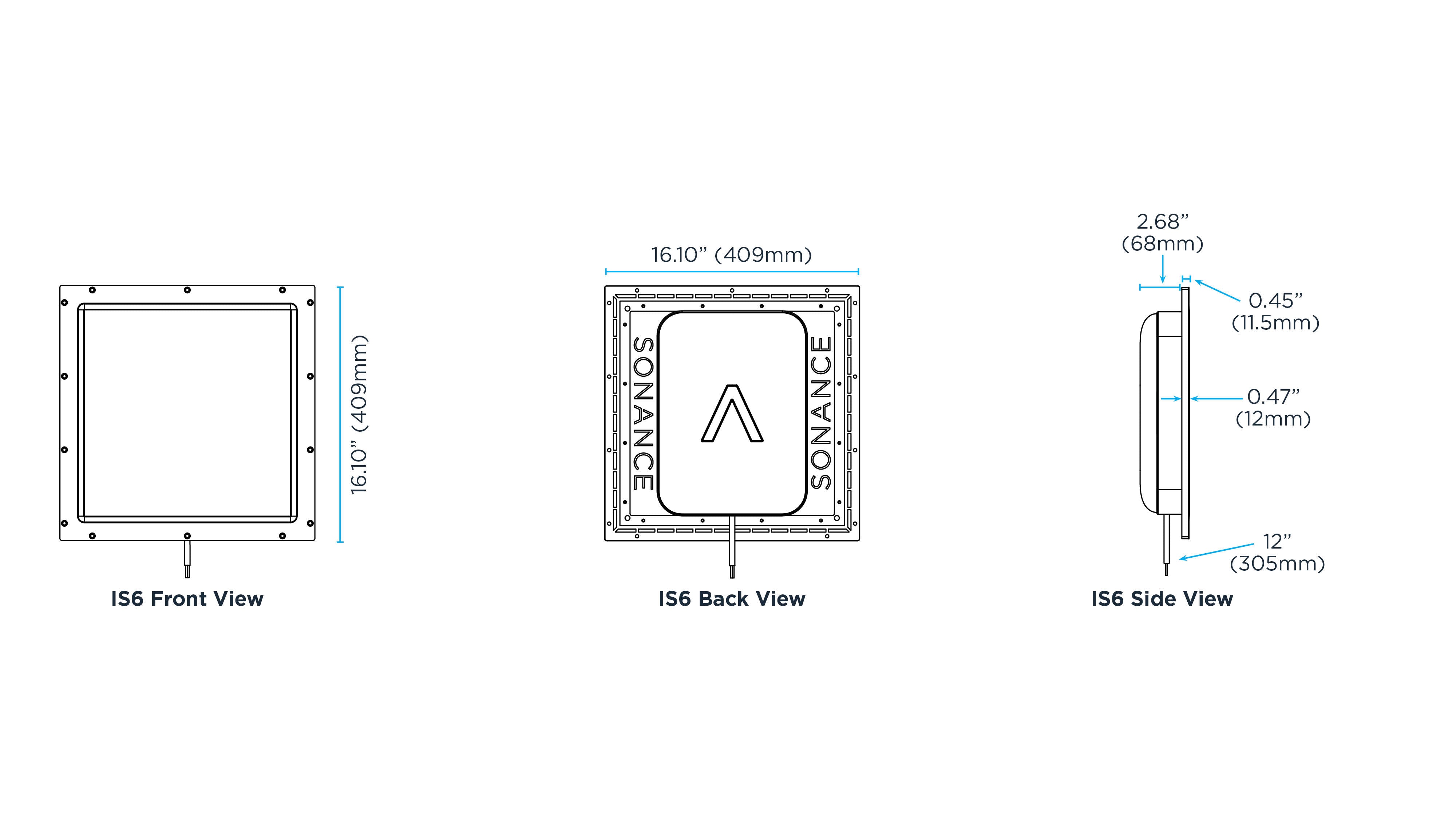

Dimensions (WxHxD)

16.1" x 16.1" x 3.15" (408.94mm x 408.94mm x 80.01mm)

Mounting Depth

2.68" (68.07mm)

IS6T (each)

Key Features

4 Ohms nominal impedance with select models  for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 4 Ohm/70v/00V tap selection)
180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor

Specifications

SKU | Color

40198 (White)

Wave Flex Drive Unit

20in^2(127cm^2) bending wave diaphragm. 1.75in (44mm) voice coil

Air Flex Woofer

98in^2 (633cm^2) air pulse diaphragm, 6.5in (165mm) carbon fiber woofer

Frequency Response (+/- 3db)

50Hz - 30kHz

Power Handling (RMS)

100 watts RMS

Sensitivity

84dB (2.83V/1m)

Nominal Impedance (Ohms)

4 ohms

Dispersion

170 degree hemispherical up to 10kHz

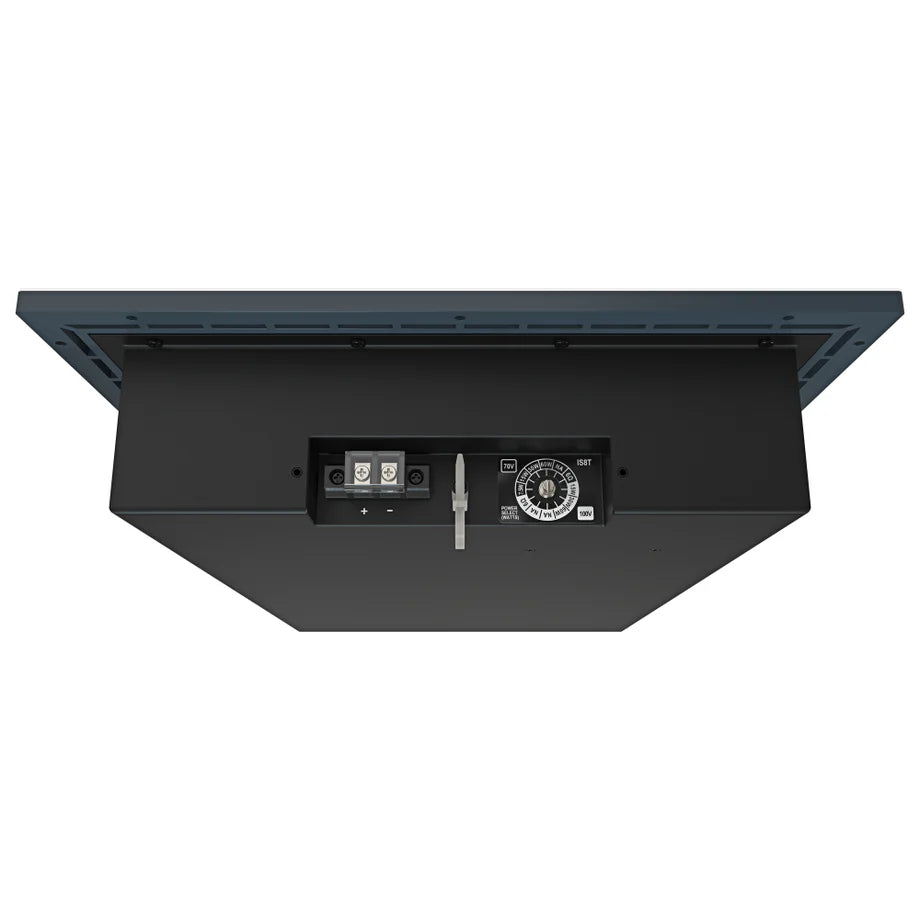

Transformer Taps

70 V / 100 V: 30W, 15W and 7.5W 70 V: 3.8W

Dimensions (WxHxD)

16.1" x 16.1" x 3.15" (408.94mm x 408.94mm x 80.01mm)

Mounting Depth

3.39" (86.11mm)

Architectural Specifications

The loudspeaker shall be of the two-way type comprising a single cabinet that is designed to install flush into a ceiling or wall and be finished over with up to 1/8” (3mm) of flexible material to provide a completely invisible installation. It shall feature Motion Flex Technology, consisting of a Wave Flex Drive Unit with a 20in (127cm) bending wave diaphragm utilizing a 1.75” (44mm) voicecoil, combined with an Air Flex Woofer with a 98in (633cm) air pulse diaphragm utilizing a 6” (165mm) carbon fiber woofer. Frequency range shall be 50Hz - 30KHz (-3dB). Total power handling shall be 100 Watts RMS program. Sensitivity measured with 2.83 volts input at 1 meter on axis averaged between 50Hz - 30KHz shall be 84dB. The unit shall be supplied with a line matching laminated core transformer suitable for 100 volt or 70 volt with rear-mounted control allowing user selectable power taps of 30W, 15W, 7.5W and 3.8W (70V) and a 6 Ohm bypass. Protection shall be provided by two independent, self-resetting poly switches. It shall provide 170 degrees of dispersion up to 10kHz. The back can shall be constructed from metal. The speaker shall be suitable for use in air handling spaces per UL2043, NFPA90 and NFPA70 S7232 as well as UL1480A, UL Rated signaling speaker. Wire shall be terminated in an enclosed area on the rear of the back can via a knock-out with internal strain relief. It shall feature the proprietary Sonance D.I.S.C. System, allowing the installer to accurately measure the thickness of topping material over the diaphragm to ensure optimum sonic performance. External dimensions shall be 16.10” Wide x 16.10” High x 3.86” Depth (409mm x 409mm x 98mm). The total enclosure shall weigh 18.41 lbs. (8.35 kg) per unit. The loudspeaker shall be the Sonance Invisible Series IS6T. No other system shall be acceptable unless the above combined performance specifications are equaled or exceeded.

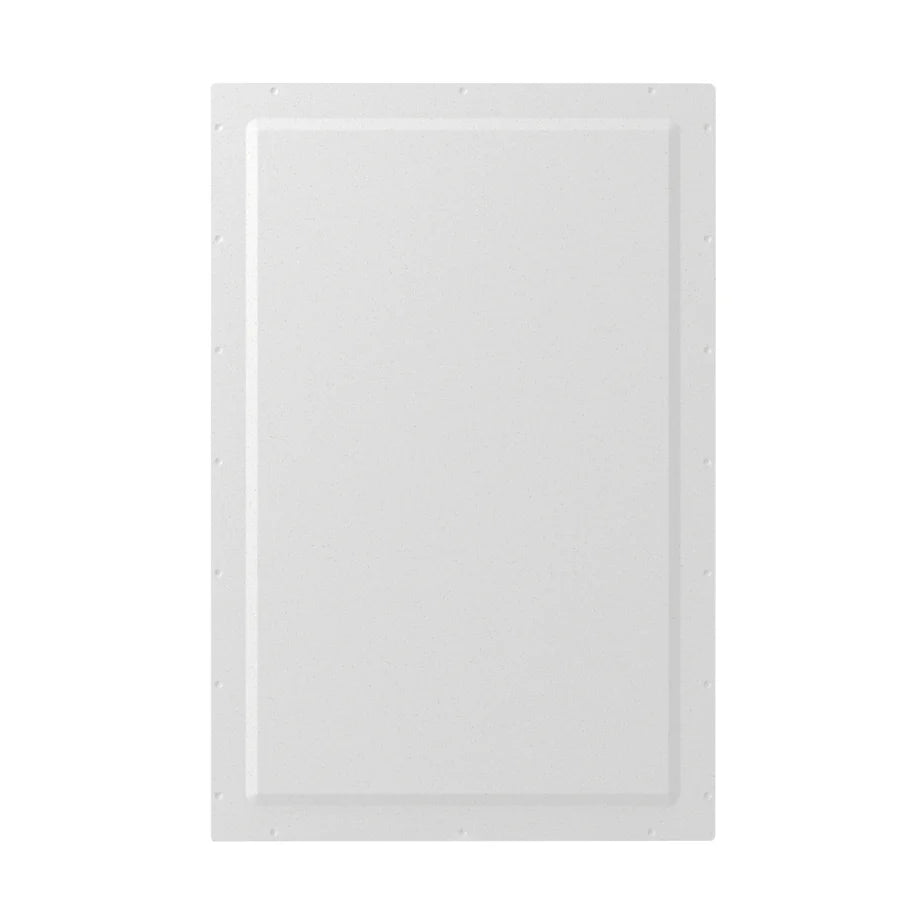

IS8 (pair or each)

Invisible Series

Sonance Invisible Series IS8 speakers deliver enhancements that are heard, not seen. With meticulous attention to performance and installation, they provide crisp, detailed audio that often surpasses traditional architectural speakers. Ideal for large residential spaces like entryways, living rooms, and multipurpose rooms, they elevate any audio experience.

Key Features

6 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor

Specifications

SKU | Color

93479 (White)

Wave Flex Drive Unit

29in^2 (188cm^2) bending wave diaphragm, 1.75in (44mm) voice coil

Air Flex Woofer

191in^2 (1234cm^2) air pulse diaphragm, 8in (203mm) carbon fiber woofer

Frequency Response (+/- 3db)

40Hz - 30kHz

Power Handling (RMS)

160 watts RMS

Sensitivity

86dB (2.83V/1m)

Nominal Impedance (Ohms)

6 ohms

Dispersion

170 degree hemispherical

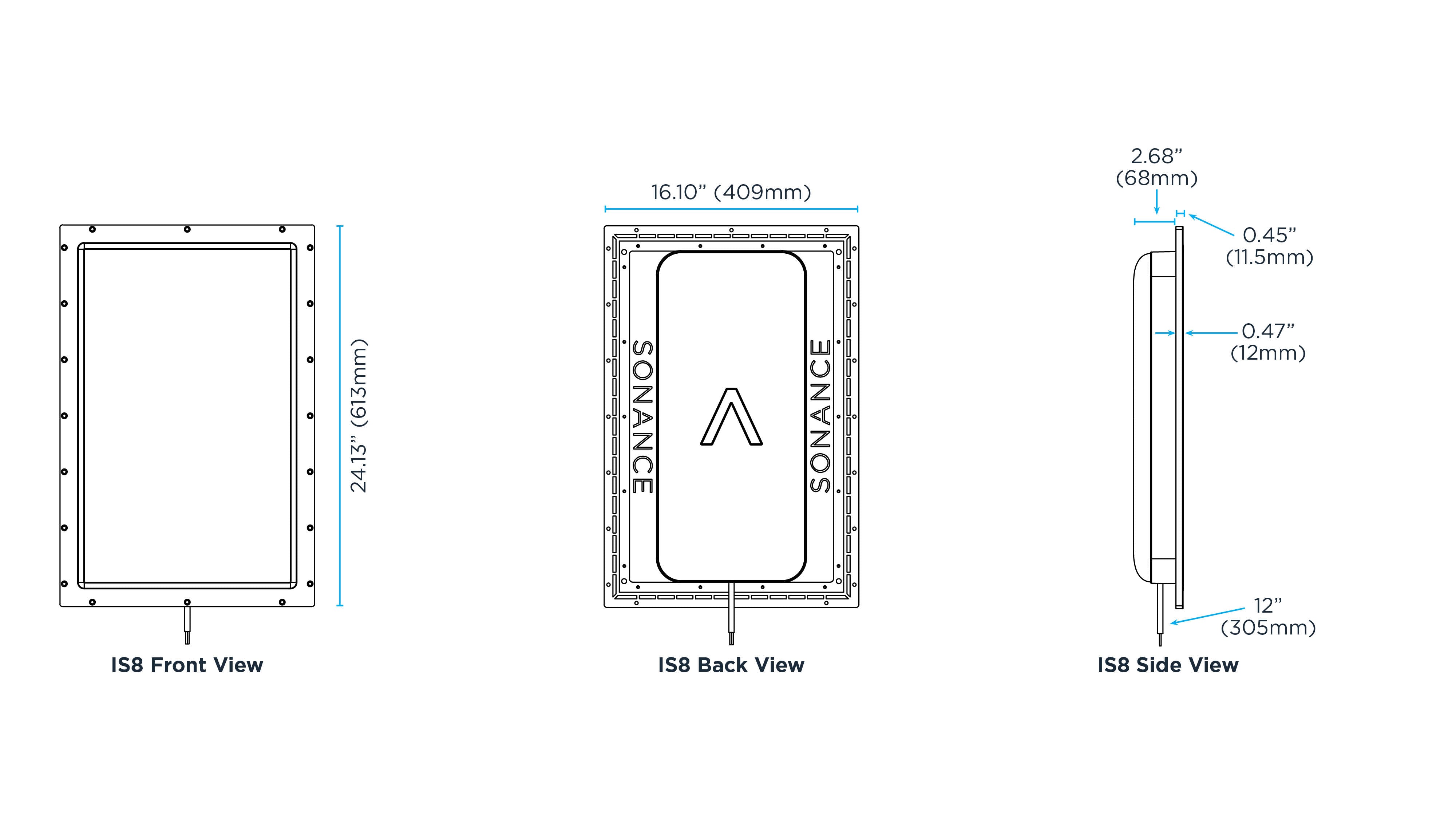

Dimensions (WxHxD)

16.1" x 24.13" x 3.15" (408.94mm x 612.9mm x 80.01mm)

Mounting Depth

2.68" (68.07mm)

IS8T (each)

Invisible Series

Invisible Speakers represent the peak of Sonance’s Designed to Disappear strategy. High frequencies are delivered using Sonance Motion Flex Technology, which features a Wave Flex Drive Unit with a bending wave diaphragm and a 1.75-inch (44mm) voice coil. Low frequencies are produced by an Air Flex Woofer that uses an air pulse diaphragm powered by an 8-inch (203mm) carbon fiber woofer.

Key Features

4 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 4 Ohm/70v/00V tap selection)
180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor

SKU | Color

40197 (White)

Wave Flex Drive Unit

29in^2 (188cm^2) bending wave diaphragm, 1.75in (44mm) voice coil

Air Flex Woofer

191in^2 (1234cm^2) air pulse diaphragm, 8in (203mm) carbon fiber woofer

Frequency Response (+/- 3db)

40Hz - 30kHz

Power Handling (RMS)

160 watts RMS

Sensitivity

86dB (2.83V/1m)

Nominal Impedance (Ohms)

4 ohms

Dispersion

170 degree hemispherical up to 10kHz

Transformer Taps

70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W

Dimensions (WxHxD)

16.1" x 24.13" x 3.86" (408.94mm x 612.9mm x 98.04mm)

Mounting Depth

3.39" (86.11mm)

Weight

25.24 lbs. (11.45kg)

Certifications

UL2043, UL1480

Attachment

Screw Terminals with strain relief

Overload Protection

Two independent self-resetting poly switches

IS10

Invisible Series

Large Invisible Series In-Wall and In-Ceiling Speaker with 10" Air Flex Woofer

Key Features

6 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor

Specifications

SKU | Color

93480 (White)

Wave Flex Drive Unit

29in^2 (188cm^2) bending wave diaphragm | 1.75in (44mm) voice coil

Air Flex Woofer

244in^2 (1573cm^2) air pulse diaphragm, 10in (254mm) carbon fiber woofer

Frequency Response (+/- 3db)

35Hz - 30kHz

Power Handling (RMS)

200 watts RMS

Sensitivity

87dB (2.83V/1m)

Nominal Impedance (Ohms)

6 ohms

Dispersion

170 degree hemispherical

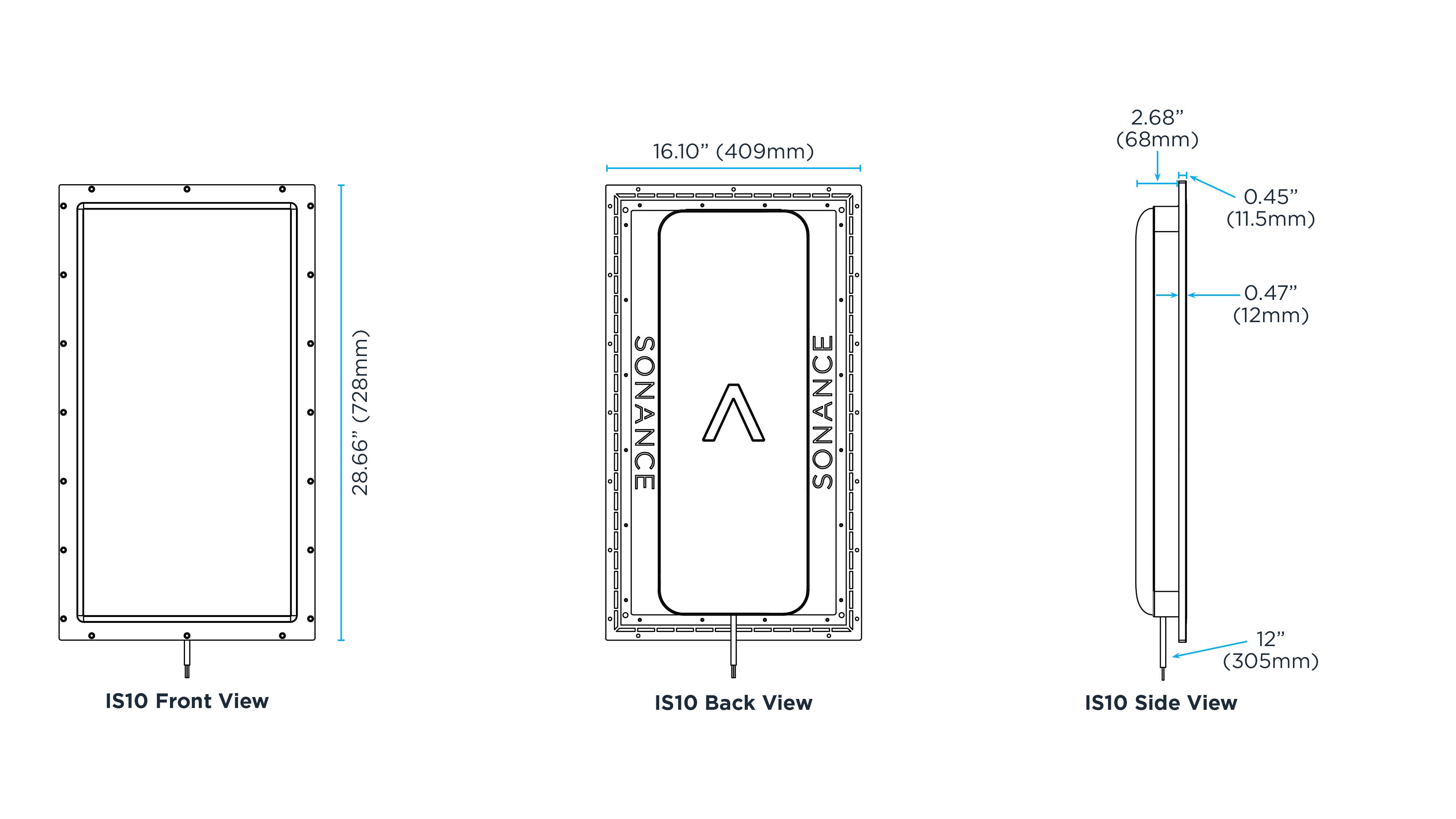

Dimensions (WxHxD)

16.1" x 28.66" x 3.15" (408.94mm x 727.96mm x 80.01mm)

Mounting Depth

2.68" (68.07mm)

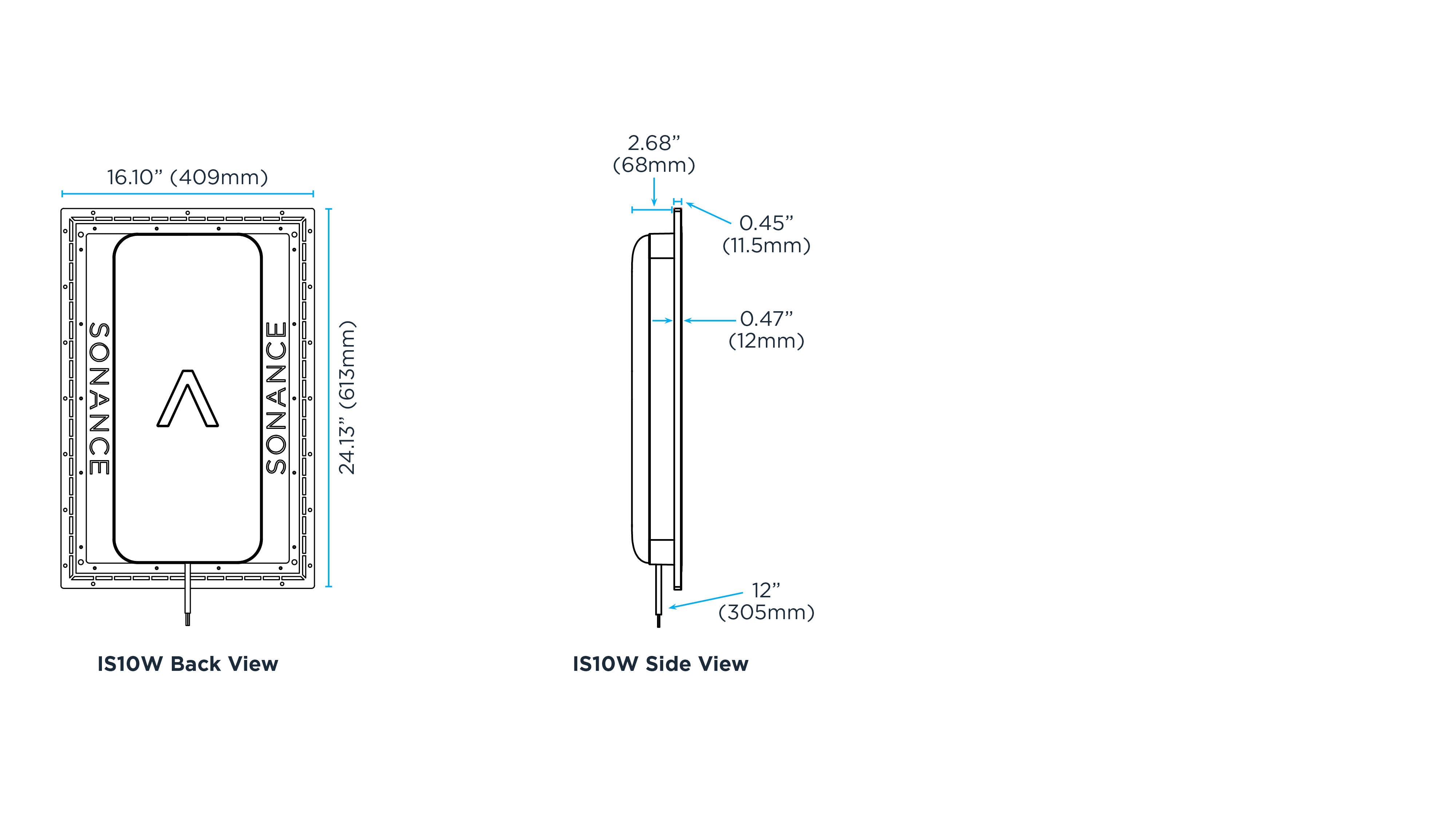

IS10W

Invisible Series

The Sonance Invisible Series IS10W woofer features a 10" glass-fiber woofer for delivering powerful, invisible bass in refined spaces. Its narrow, design fits into 16" on-center stud construction, achieving impressive bass response with straightforward installation.

Key Features

180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor

Specifications

SKU | Color

93481 (White)

Air Flex Woofer

244in^2 (1573cm^2) air pulse diaphragm, 10in (254mm) glass-fiber woofer

Frequency Response (+/- 3db)

35Hz - 250Hz

Power Handling (RMS)

200 watts RMS

Sensitivity

87dB (2.83V/1m)

Dispersion

180 degree hemispherical up to 250Hz

Dimensions (WxHxD)

16.1" x 24.13" x 3.15" (408.94mm x 612.9mm x 80.01mm)

Mounting Depth

2.68" (68.07mm)

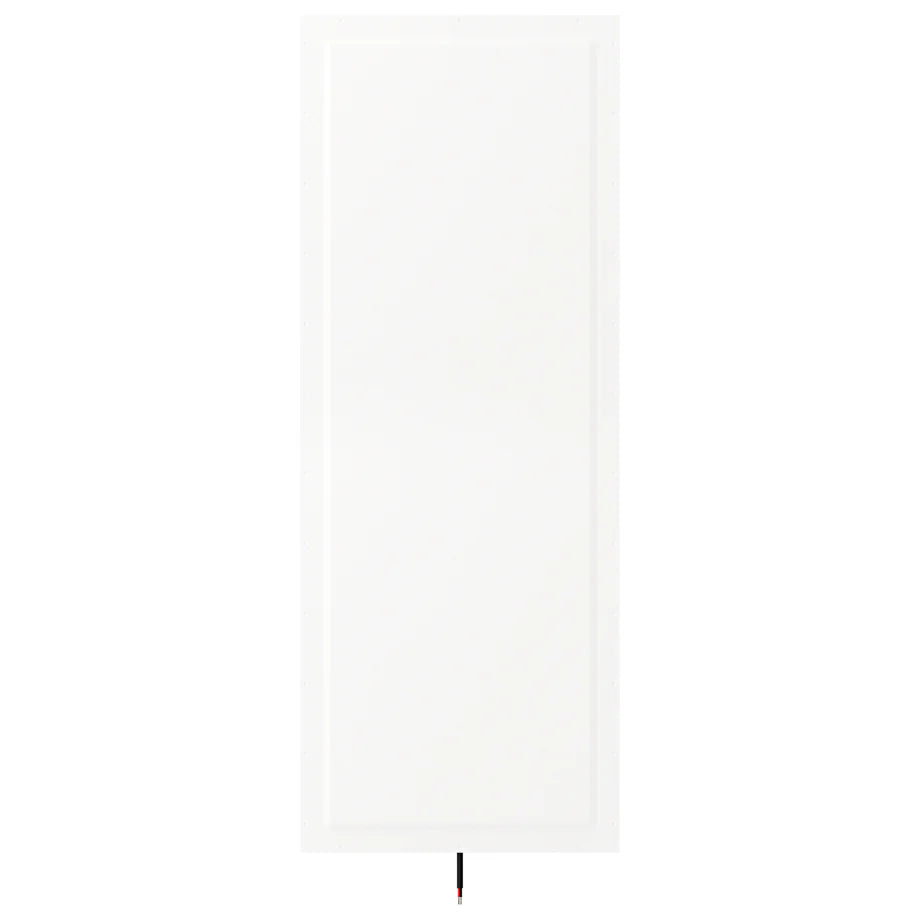

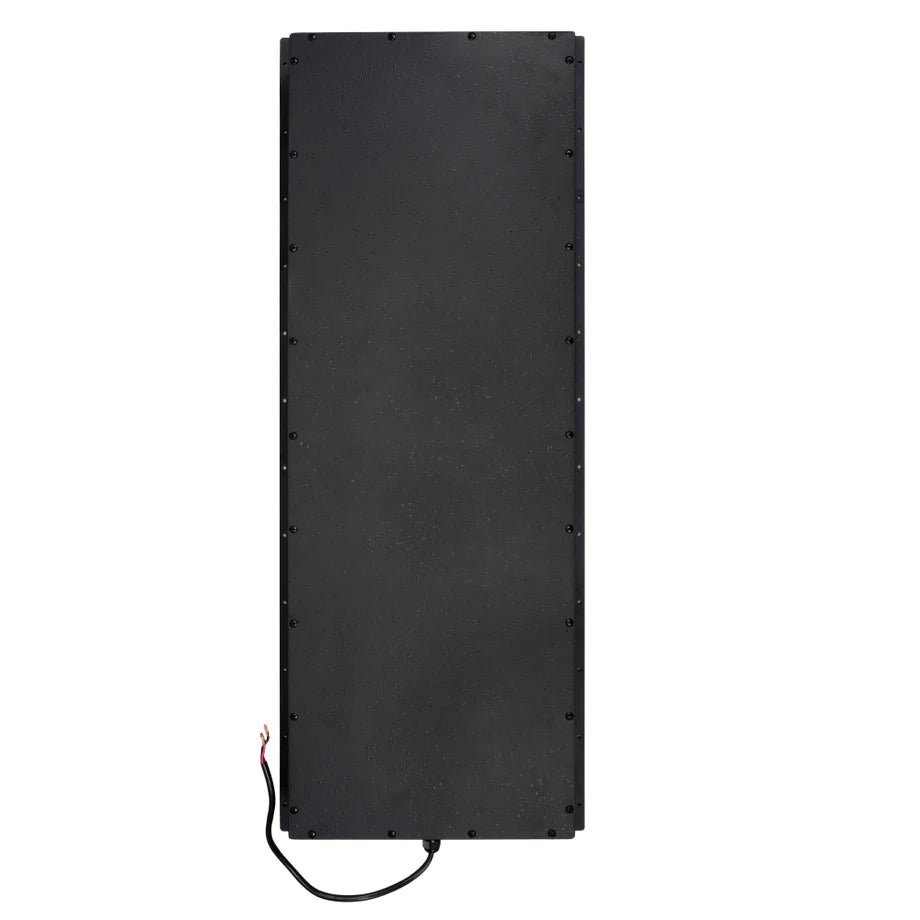

IS10-2W

Invisible Series

The Sonance IS10-2W Subwoofer features dual 10" woofers in an in-wall design for powerful, hidden bass. Its slim enclosure fits 16" on-center stud bays, ensuring easy installation. Designed for refined spaces, it delivers deep bass without visible hardware. For in-wall installation only.

Key Features

6 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor

Specifications

SKU | Color

93591 (White)

Air Flex Woofer

471in^2 (3039cm^2) air pulse diaphragm dual 10" (254mm) carbon fiber woofer

Frequency Response (+/- 3db)

32Hz - 250Hz

Sensitivity

92dB (2.83V/1m)

Dispersion

180 degree hemispherical up to 250Hz

Dimensions (WxHxD)

16.1" x 42.8" x 3.86" (408.94mm x 1087.12mm x 98.04mm)

Mounting Depth

3.39" (86.11mm)

Weight

37.59 lbs. (17.05kg)

Optional Items make the installation easier:

Cardboard Space Savers (to help electricians run speaker wire correctly)

Enclosures (install behind the speaker to contain sound from opposite room)

Pre Construction Brackets for Enclosures

SONANCE DISC SYSTEM DEPTH SENSING GAUGE FOR INVISIBLE SERIES (1 EACH)

The Sonance DISC System works by using a high-accuracy depth gauge and embedded locator discs to measure the thickness of a finish applied over the surface of a Sonance Invisible Speaker. This allows for a consistent finish and performance within specifications every time.
